Image King 7K222 Thermal Billing Printer

Image King Thermal Billing Printer (Model: 7K222) – Version 2

Printers

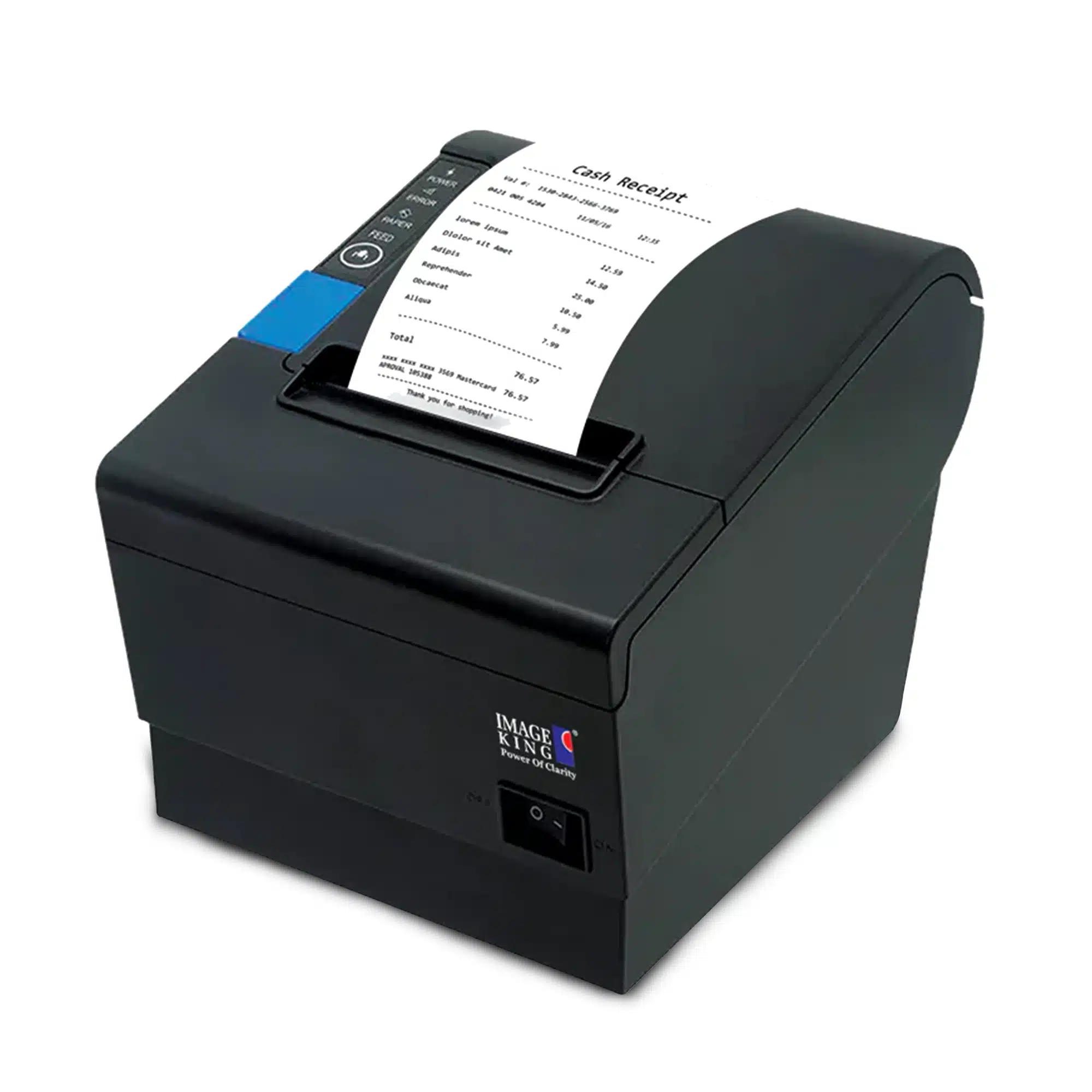

The Image King 7K222 is a lightweight, high-speed thermal billing printer engineered for retail and hospitality point-of-sale use. It prints at selectable speeds of 230, 260, and 300 mm/s using direct thermal technology, so there is no ink or ribbon to replace. Weighing just 1.0 kg, it fits easily into space-constrained counters, supports both 80 mm and 58 mm paper widths, and offers USB and USB+Serial interfaces with optional Bluetooth/WiFi for flexible integration.

Specifications

Model

Image King Thermal Billing Printer — 7K222 (Version 2)

Printing method

Direct Thermal

Printing speed

230 mm/s | 260 mm/s | 300 mm/s

Paper width

80mm | 58mm / 80mm

Column capacity

576 dots/line or 512 dots/line

Interface

USB / USB+LAN (Optional: BT/WiFi) | USB+Serial+LAN | USB+Serial (Optional: BT/WiFi)

Line spacing

3.75mm (Adjustable by commands)

Column number

80mm paper: Font A — 42 or 48 col | Font B — 56 or 64 col | Chinese — 21 or 24 col

Character size

Font A: 1.5×3.0mm (12×24 dots) | Font B: 1.1×2.1mm (9×17 dots) | Chinese: 3.0×3.0mm (24×24 dots)

Barcode & Memory

1D Barcode

UPC-A, UPC-E, EAN13 (JAN13), EAN8 (JAN8), CODE39, ITF, CODABAR, CODE93, CODE128

2D Barcode

QR Code | QR Code / PDF417

Input buffer

USB / USB+Serial: 96 KB | USB+LAN: 256 KB | Up to 4096 KB

NV Flash memory

256 KB

Character sets

PC437, PC850, PC860, PC863, PC865, PC852, PC858, PC866, WPC1252, Arabic, Greek, Hebrew, Latvian & more

Power

Power adaptor input

AC 100 ~ 240V, 50 ~ 60Hz

Printer input

DC 24V / 2.5A

Cash drawer port

DC 24V / 1A

Physical Characteristics

Weight

1.0 kg

Dimensions (W × D × H)

194.5 × 145 × 146.4 mm

Environmental Requirements

Operating temperature

0°C ~ 45°C

Operating humidity

10% ~ 80% (non-condensing)

Storage temperature

-10°C ~ 60°C

Storage humidity

10% ~ 90% (non-condensing)

Reliability

Auto cutter type

Partial cut

Cutter life

1.5 million cuts

Print head life

150 km

Software & Compatibility

Emulation

ESC/POS

Driver support

Windows, JPOS, Linux, OPOS, Android, Mac

Test utility

Windows & Linux

SDK support

iOS, Android, Windows

TRUSTED SINCE 1995

30 years serving Indian businesses. ISO 9001 certified manufacturing.

WIDE COMPATIBILITY

Works with Windows, Linux, Android, iOS and Mac. Full ESC/POS support.

EASY RETURNS

Wrong fit? 7-day replacement, no questions asked.

Frequently asked questions

Q
What paper width does the Image King 7K222 Version 2 support?

The Image King Thermal Billing Printer 7K222 Version 2 supports 80mm paper width as standard, with select variants also supporting 58mm / 80mm paper — compatible with standard POS billing rolls widely available across India.

Q
What connectivity options does the 7K222 Version 2 offer?

The printer supports USB, USB+LAN, and USB+Serial+LAN interfaces. Optional Bluetooth and WiFi are also available, making it suitable for both wired POS counters and wireless billing setups in retail, restaurants, and service businesses.

Q
Is this printer compatible with Android and iOS billing apps?

Yes. The 7K222 Version 2 supports SDK integration for iOS, Android, and Windows, and includes drivers for Windows, Linux, Mac, JPOS, and OPOS — ensuring seamless compatibility with most POS billing software and mobile applications.

Q
Does this printer support QR code and barcode printing?

Yes. It supports all major 1D barcodes including CODE128, CODE39, EAN13, UPC-A, and more, as well as 2D formats including QR Code and PDF417 — ideal for retail, pharmacy, restaurant, and logistics billing applications.

Q
How long will the print head and cutter last?

The print head is rated for 150 km of printing and the auto cutter for 1.5 million cuts, ensuring long-term, reliable performance in high-volume daily billing environments.

Q
Does the printer support a cash drawer?

Yes. The Image King 7K222 Version 2 includes a cash drawer port output at DC 24V / 1A, making it compatible with standard cash drawers used in retail POS setups.
